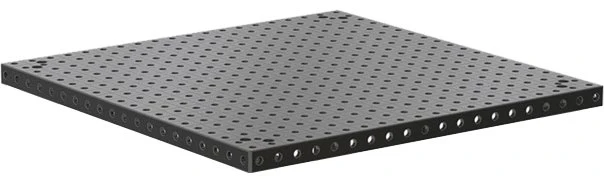

(Image is of a Siegmund System 16 BASIC Series, Welding Table with a Siegmund Accessory Kit. These items are not included. This is being shown as an example.)

The System 16 Welding Table Series was created with Fine Detail Applications in Mind.

All System 16 Basic tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

The materials used are fundamental to the high level of hardness and long service life.
With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.

Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 16 Basic Series Welding Tables

Specs & Features
of the System 16
BASIC Series
Welding Tables

Welding Table Specs and Features:

Overall Tabletop Size: 1,000x1000mm
Welding Table Series: System 16 Basic Series
Welding Table Material Thickness: Approx. 11.5-13 mm
Welding Table Material Type and Finish: High Quality S355J2+N Steel, Plasma Nitrided and BAR-Coated
Official Welding Table Part No.: 4-161010.P
Borehole: Ø 16mm
Grid: Grid lines in a distance of 50x50mm help you to arrange your accessories.
Approximate Table Weight: 403 lbs. / 183 kg.

Boreholes on the surface are in a 50X50 mm Grid Configuration.
Borehole Ø 16 mm
Through-hardened tool steel X8.7 + Plasma nitration
Material thickness approx. 11,5 – 13 mm
M12-thread on 4 sides every 50 mm
Rounded corners and edges

Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type	Item No.	Capacity Per Leg	Leg Height	Table Height	Cost Per Leg
1. Standard Leg	161856	2,200 lbs. / 1,000 kg	32" / 815 mm	33.4" / 850 mm	Included
2. Height Adjustable Leg	4-160877.XX	2,200 lbs. / 1,000 kg	21.6" - 37.4"/ 550-950 mm	23.6"-39.3"/ 600-1,000mm	$102
3. Leg with Casters and Locking Brakes	4-161855.XX	440 lbs. / 200 kg	32"/ 815 mm	33.4"/ 850 mm	$114
4. Height Adjustable Leg with Casters and Locking Brakes	4-160879.XX	440 lbs./ 200 kg	23.6"-35.4"/ 600-900 mm	25.5"-37.4" / 650-950 mm	$169
5. Floor Anchoring Legs	4-160874.XX	2,200 lbs. / 1,000 kg	32" / 815 mm	33.4"/ 850 mm	$98

Siegmund System 16 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

- Item No.: 161856
- Leg Height: 32" / 815mm
- Table Height: 33.4" / 850mm
- Fine Adjustment: 1.96" / 50mm
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $0 (Included with Welding Table as a Standard)
- Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)

2. Height Adjustable Siegmund Leg(s)

Item No.: 4-160877.XX
Leg Height (Adjustable): 21.65" - 37.4" / 550mm - 950mm
Table Height (Adjustable): 23.6" - 39.37" / 600mm - 1,000mm
Fine Adjustment: 1.57" / 40mm
Capacity Per Table Leg: 2,200 lbs.
Cost Per Leg: $102
Cost Per 4 Leg Set: $408

3. Siegmund Leg(s) with Casters and Locking Brakes

Item No.: 4-161855.XX
Leg Height: 32" / 815mm
Table Height: 33.4" / 850mm
Fine Adjustment: 1.18" / 30mm
Capacity Per Table Leg: 440 lbs.
Cost Per Leg: $114
Cost Per 4 Leg Set: $456

4. Height Adjustable Leg(s) with Casters and Locking Brakes

Item No.: 4-160879.XX
Leg Height (Adjustable): 23.6" - 35.4" / 600mm - 900mm
Table Height (Adjustable): 25.6" - 37.4" / 650mm - 950mm
Fine Adjustment: 1.18" / 30mm
Capacity Per Table Leg: 440 lbs.
Cost Per Leg: $169
Cost Per 4 Leg Set: $676

5. Siegmund Leg(s) for Floor Anchoring

- Item No.: 4-160874.XX
- Leg Height: 32" / 815mm
- Table Height: 33.4" / 850mm
- Fine Adjustment: 1.96" / 50mm
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $98
- Cost Per 4 Leg Set: $392

System 16 Accessory Sets

The Most Popular Siegmund Accessory Bundles

System 16
Accessory Sets
The Most Popular Siegmund Accessory Bundles

Set 1.1 for System 16 (28 Piece) - 16mm Bored Hole Accessories (Item No. 4-163100.1) - Siegmund Welding Tables and Fixtures USA - A Division of Quantum Machinery Group

Sold out

Set 3.1 for System 16 (72 Piece) - 16mm Bored Hole Accessories (Item No. 4-163300.1) - Siegmund Welding Tables and Fixtures USA - A Division of Quantum Machinery Group

Sold out

Set 5.1 for System 16 (117 Piece) - 16mm Bored Hole Accessories (Item No. 4-163500.1) - Siegmund Welding Tables and Fixtures USA - A Division of Quantum Machinery Group

Sold out

Featured Siegmund Videos

of the System 16 Welding Tables

Featured Siegmund Videos
of the System 16 Welding Tables

Impact Test Standard Weld Table vs Siegmund Weld Table

Why Our Welding Tables are Plasma Nitrided

The Strength of a Siegmund Welding Table

"You Can Produce Everything..."

This Month's

Featured Siegmund Welders

This Month's
Featured Siegmund Welders

Greg from Red Beard's Garage

Red Beard’s Garage is world famous and has over 410,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube. Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )

Jeff Lutz (Lutz Race Cars) from Street Outlaws

Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 474,000+ Instagram Followers and over 467,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, "Wow it is amazing!" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!

Here is a video of Jeff Lutz in a drag race, for your own entertainment!

Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.

Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400
Email: Sales@WeldingTablesAndFixtures.com

If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.

Thanks!

Name This field is required

Company Name This field is required

Email This field is required

Phone Number This field is required

Address This field is required

Message This field is required

The System 16 Welding Table Series was created with Fine Detail Applications in Mind.

All System 16 Basic tables feature the latest upgrades in aesthetics, versatility, and durability. Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

Impact Test Standard Weld Table vs Siegmund Weld Table

Why Our Welding Tables are Plasma Nitrided

The Strength of a Siegmund Welding Table

"You Can Produce Everything..."

All System 16 Basic tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

Our Smallest Siegmund Welding Tables

4-281035: Siegmund 1,500x1,000mm "BASIC" System 28 Welding Table

4-161010.P: Siegmund 1,000x1,000mm "BASIC" System 16 Welding Table
